Dio Repsol Honda Edition

A new and sportier look, aggressive design and fuelled by the spirit of a true racer, the DIO Repsol Honda Edition promises to unleash your sporty side. It’s time to ‘Keep DIOing it’ the Repsol Honda way.

KEY FEATURES

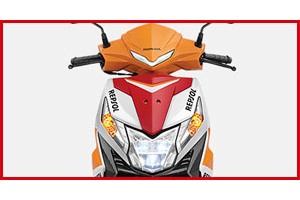

LED Headlamp & Position Lamp

For those swanky riders of the dark, the ultra stylish LED gives you a clear view of the road while the signature LED position lamp delivers a dashing look to the ride and adds a dash of style on the rider.

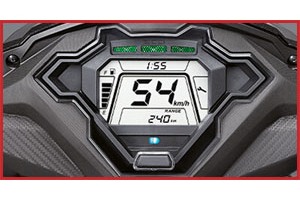

Fully Digital Meter

A swanky digital meter, it shows more than just the speed at which you are moving. Go from 0 to a fully beating heart at one look.

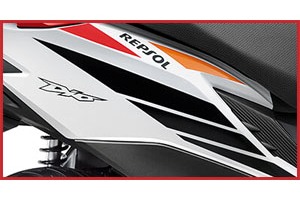

Racing Inspired Graphics

If thrill had a design language then this is it. The Repsol Honda Edition of Dio is designed to inspire your inner racer. Flashy and fierce it’s time to set the streets on fire.

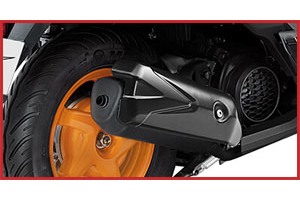

Stylish Muffler Protector

The stylish muffler in Dio makes the silencer look really cool while protecting the feet from feeling the heat.

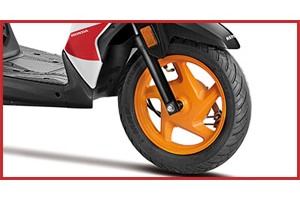

Repsol Honda Colour Orange Alloy Wheels

The Repsol Honda colour inspired alloy wheel brings out the attitude of not just a rider but a racer as well.

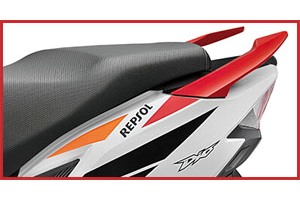

Split Grab Rail

Better grip meets gripping design. These cool and edgy looking split grab rails in the new Dio Repsol Honda Edition makes it look like a complete stunner.

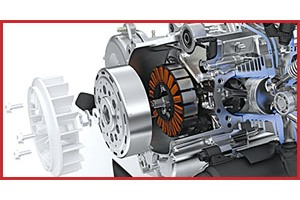

Silent Start with ACG

Honda Dio is equipped with ACG starter, which starts the engine silently by removing the gear meshing noise. It also reduces maintenance cost.

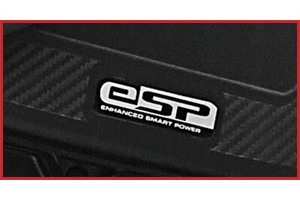

eSP Technology

Get ready for one hell of a ride in the Honda Dio. It is powered by the globally acclaimed Enhanced Smart Power Technology that reduces friction and improves combustion delivering class leading performance and mileage.

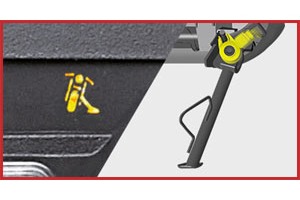

Side Stand Engine Cut Off

A revolutionary system that cuts off the engine when the side stand is on engage mode.

Programmed Fuel Injection

Sensor based PGM-FI system constantly adjusts the air/fuel mixture, as per the ride mode and conditions allowing complete combustion. This results in consistent performance, better fuel efficiency, all weather start and lesser emissions.

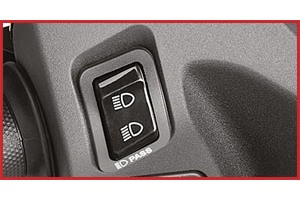

Passing Switch

These indicators are your ride’s way of saying ‘give me way’. Speak on the go without saying a word.

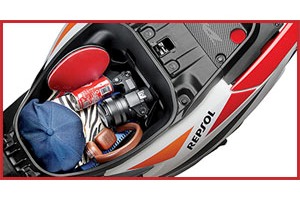

Underseat Storage

Lift your seat upright and you have a place to perfectly store your stuff. Be it your headphone, notebook or DSLR, put it in and ride wherever.

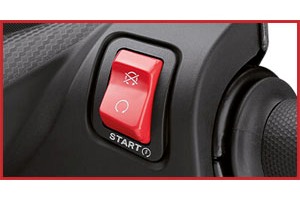

Engine Start/Stop Switch

Switch to the better way of riding. Start and stop the engine with just a click.

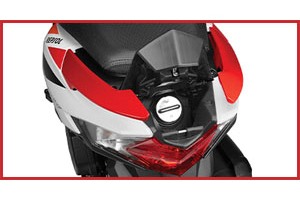

External Fuel Lid

No more hassles of lifting your seat. Take a stand for refuelling, without having to leave your seat.

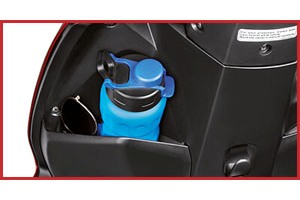

Front Pocket

Store your essentials, be it your sipper or your glares. Oh goodess gracious, this front pocket is twice as spacious.

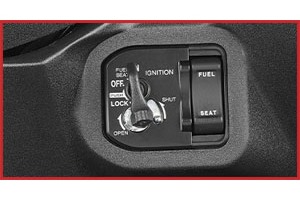

Multi Function Switch

One compact console insures convenience of operating ignition, handle lock, seat lock & external fuel lid.

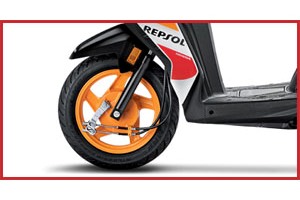

Bigger Front Wheel with Telescopic Suspension

Honda Dio is equipped with a Telescopic Suspension for less shock and more awe while riding. 90/90-12 tubeless tyres ensures a stable and comfortable ride even in rough and uneven terrains.

SPECIFICATIONS

  • 1260mm WHEEL BASE
  • 103kg WEIGHT
  • 1150mm HEIGHT
  • 723mm WIDTH
  • 1808mm LENGTH
ENGINE TYPE Fan Cooled, 4 Stroke, SI Engine
CYLINDER CAPACITY 109.51 cc
GROUND CLEARENCE 160mm
FUEL TANK CAPACITY 5.3L
FUEL SYSTEM PGM-FI
MAX NET POWER 5.71 kW @8000 rpm
MAX NET TORQUE 9 N-m @ 4750 rpm
BORE 47.0 mm
STROKE 63.1 mm
AIR FILTER TYPE Viscous Paper Filter
STARTING METHOD Kick/Self
CLUTCH TYPE Automatic
COMPRESSION RATIO 10.0 + 0.2
MAX SPEED 83 Kmph
TYRE SIZE (FRONT) 90/90-12 54J
TYRE SIZE (REAR) 90/100-10 53J
TYRE TYPE (FRONT) Tubeless
TYRE TYPE (REAR) Tubeless
BRAKE TYPE & SIZE (FRONT) Drum 130mm
BRAKE TYPE & SIZE (REAR) Drum 130mm
FRAME TYPE Under Bone
SUSPENSION(FRONT) Telescopic Suspension
SUSPENSION(REAR) 3-Step Adjustable Spring Loaded Hydraulic
BATTERY 3.0 Ah
HEAD LAMP LED
TAIL LAMP LED
